XH300 Automotive Signal Generator for Crankshaft Position Hall and Magnetoelectric Sensor Simulation Adjustable 5V 12V Output Frequency 1Hz to 8kHz Compatible with Camshaft Vehicle Speed Engine Test

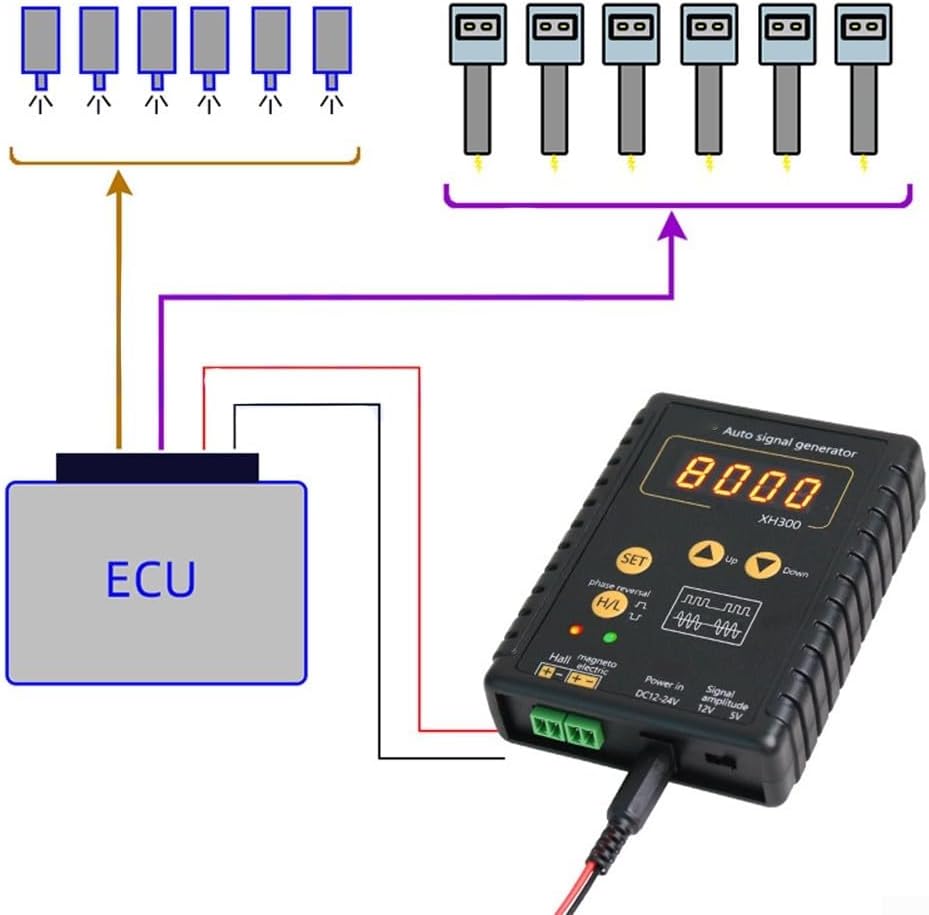

Features:Built-in 6 crankshaft signals: 58+2, 34+2, 36+2, 60+0, 56+4, 10+1;Built-in 2 camshaft signals: 4+1 and 6+1. The crankshaft signal can be edited by yourself.- Standard 60+0 signal analog output type.- Hall signal and magnetoelectric signal are output simultaneously.- Magnetoelectric signal or Hall signal output. The maximum output amplitude/voltage is equal to the input power and can be adjusted by adding a potentiometer.- Use 60+0 signal to simulate the vehicle speed sensor signal output.- Camshaft sensor 4+1, 6+1 signal simulation.- Use 60+0 signal to monitor odometer or test odometer. It can be used to monitor the car engine computer board or speedometer.- Users can edit the crankshaft signal, and the edited crankshaft sensor signal can be automatically saved.- One-key single-phase reversal.- Frequency range: 1Hz to 8Hz- Signal amplitude: 5V and 12V adjustable- Power input: 12-24VDC.Specifications:Part name: Signal generator sensorMaterial: ABSColor: BlackSize: As shown in the figure01. Hall sensor signal simulation.02. Magnetoelectric sensor signal simulation.03. Crankshaft position sensor signal simulation.04. Camshaft 4+1 and 6+1 signal simulation.05. Engine speed signal simulation.06. Vehicle speed (odometer) signal simulation.07. Magnetoelectric ABS sensor signal simulation.08. Signal phase one-key inversion.09. Hall signal and magnetoelectric signal are output simultaneously.10. Users can edit the crankshaft signal, and the newly edited signal will be automatically saved.11. Built-in 6 crankshaft signals: 58+2, 34+2, 36+2, 60+0, 56+4, 10+1;12. Built-in 2 camshaft signals: 4+1 and 6+1. The crankshaft signal can be edited by yourself.13. 60+0 is a standard tooth signal, which can simulate the speed signal and magnetic signal.14. Signal frequency: 1-8000Hz.15. Signal amplitude: 5V and 12V adjustable.16. Power supply: 12-24V.Package content:1*Sensor2*Test line2*Accessories

• [MULTIFUNCTIONAL TESTING TOOL] This automotive signal generator offers a comprehensive array of crankshaft position sensor simulations, including standard signals like 60+0 and various configurations for detailed diagnostic work.
• [SIMULTANEOUS OUTPUTS] Enjoy the benefit of both Hall and magnetoelectric signals being output at the same time, enhancing diagnostic capabilities across different automotive systems.
• [CUSTOMIZABLE SIGNALS] The device allows users to edit crankshaft sensor signals easily, with changes being automatically saved for use, making it user-friendly for technicians.
• [FREQUENCY AND AMPLITUDE OPTIONS] Featuring adjustable signal amplitudes of 5V and 12V along with a frequency range from 1Hz to 8Hz, it caters to a wide variety of testing needs in automotive applications.
• [CHECK YOUR SPECIFICATIONS] Be sure to verify compatibility with your vehicle before making a purchase to optimal performance.
