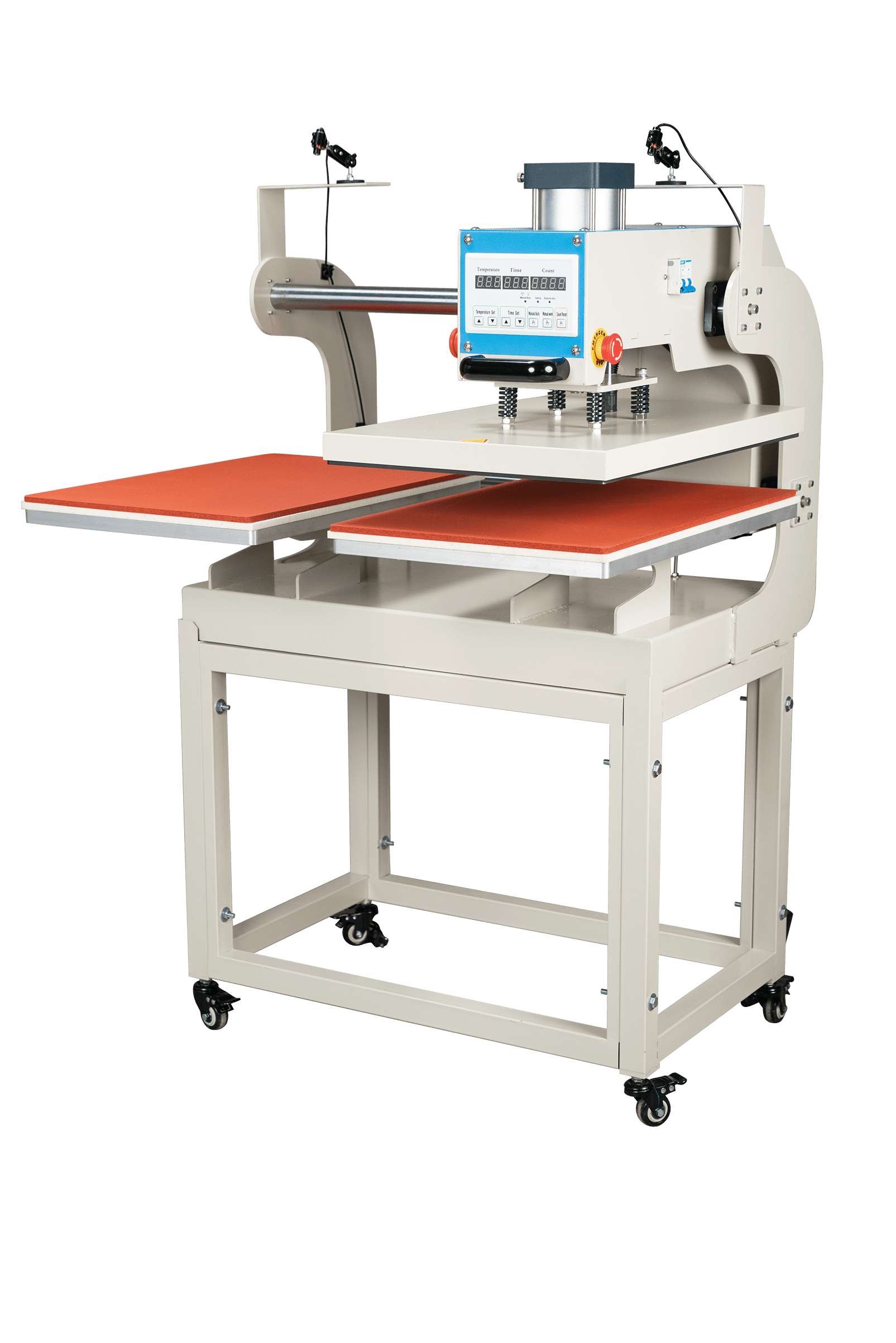

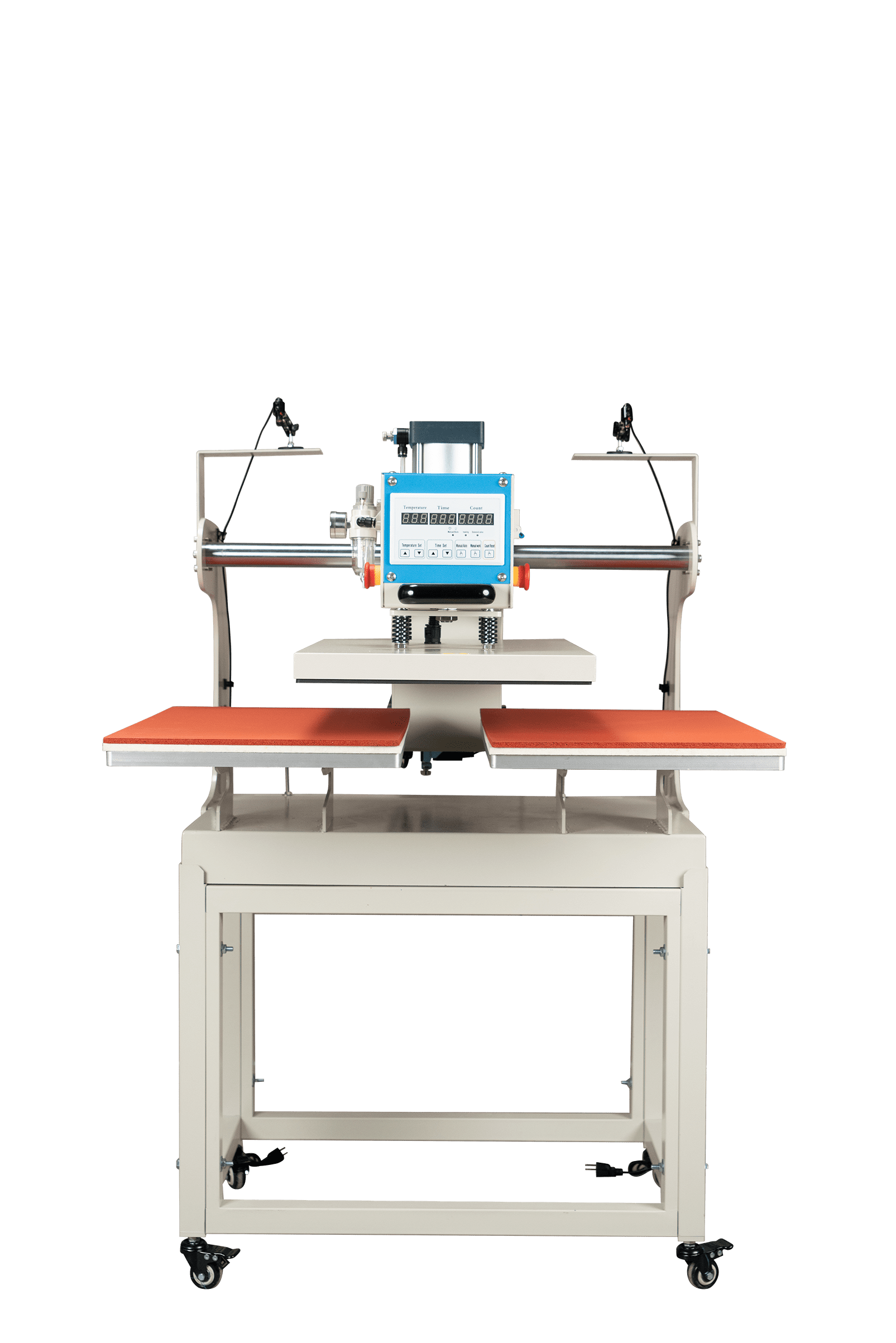

LIVIVOX 16x24 pneumatic up sliding dual platen heat press machine with infrared positioning

This 16" x 24" pneumatic up-sliding heat press machine from LIVIVOX offers a range of advanced features for efficient and precise heat transfer printing. With a full digital integrated display, high-accuracy signal indication, and adjustable pressure up to 0.8Mpa, this machine ensures even heating and stable sliding for a smooth printing process. Designed for convenience, it features a separate stand for the lower aluminum plate, a base frame for stability, and can be powered by an air compressor (not included) for more accurate small-item printing. The machine's durable construction and high-temperature cloth cover make it suitable for a variety of materials, including cotton, polyester, and ceramics.

• 16" x 24" Up-sliding Heat Press Machine with Pneumatic operation for convenient printing
• Full digital integrated display control with high accuracy of signal indication when press process is completed
• Heating tube and heating plate are integrated into a whole part, providing short heating time, safety, durability, and even temperature distribution
• Heat press machine pressure can be adjusted up to 0.8Mpa, with a stable and convenient sliding mechanism for high efficiency
• Special high temperature cloth for hot stamping machine covered, and lower plate covered with silicon mat and sponge for even heating pressure
• Automation print once backside inductive screw is touched, with left and right side bearings that move the heat press machine in parallel

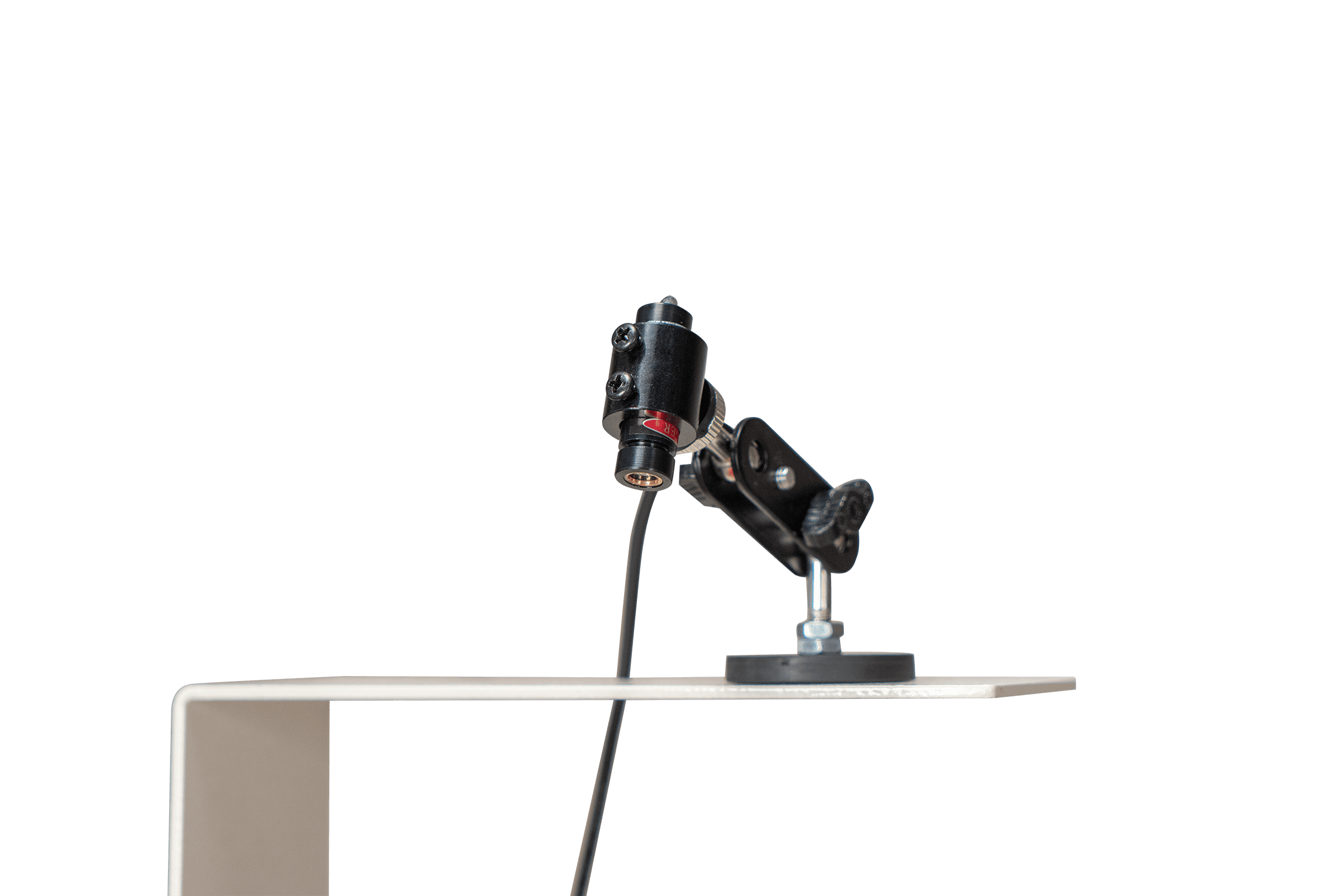

• General pressure for 0.4Mpa-0.6Mpa heat printing, with laser positioning for accurate printing
• Big LCD Display Controlled, with Temperature, Time and Count Set to save labor and time cost with automatic counting

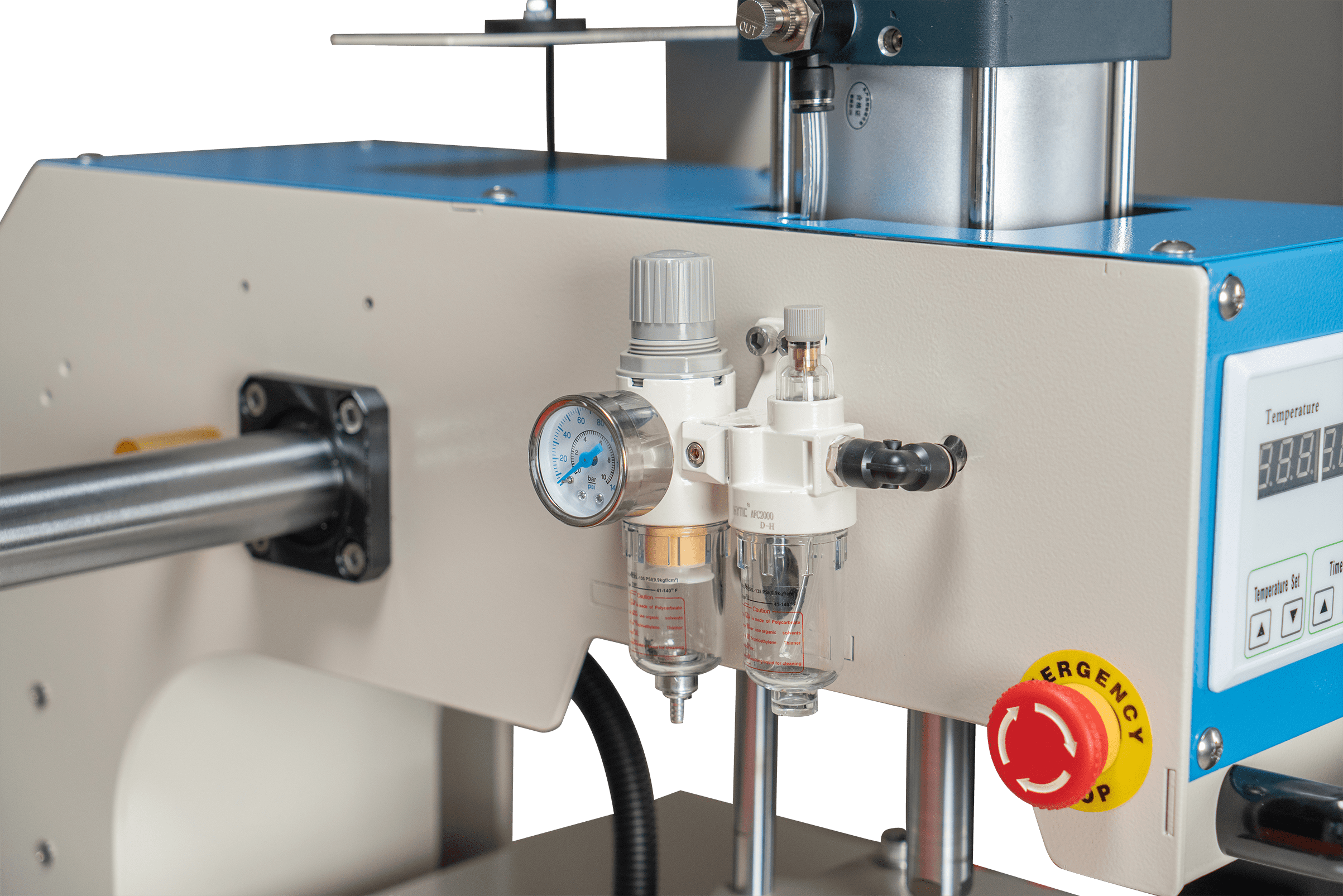

• Emergency Stop Button for urgent case stop if needed, and a pressure adjusting knob for easy adjustment of different pressure
• Includes a right bottle for lubricating the air cylinder and a hose for the Air Compressor (not included)
• Voltage: 110V/60HZ, Power: 1.6 KW, Temperature: 0-299°C, Delaying Time: 1-999 S, Gross Weight: 306.5 LB
• Package Size: 42.5" x 33.9" x 32.3", Accept Thickness: Max. 2.36" Thick Items
• Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics
• Recommended Time for Different Materials: Pure Cotton (15s-25s), Polyester (40s), Chemical Fiber (10s-40s), Pearl Board (60s-100s), Metal Pendant (60s), Mousepad (50s), Vitrolite (180s), Key Ring Pendant (100s), Ceramics (180s)
• Heat Plate Size: 16" x 24" (40 x 60cm)
